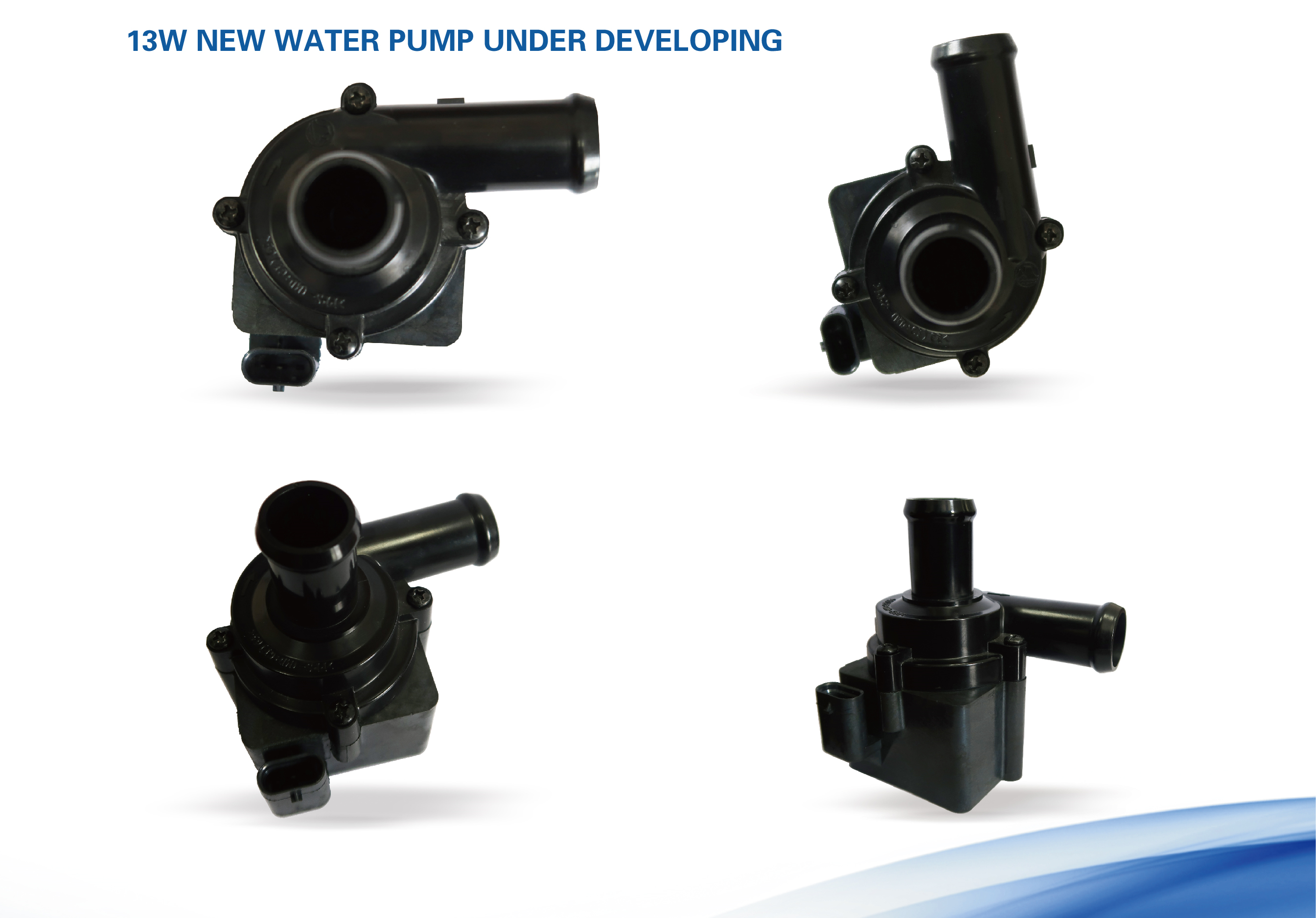

YT13 series water pump is mainly applied to traditional fuel vehicle engine turbocharger cooling;also can be applied to hybird and electric vehicle main motor and its control module cooling,at the same time as the power source of the vehile air conditioning warm air system heating circuit,etc
specification
1、Rated Voltage：DC13V
2、DC13Vtest：pressure difference of inlet and outlet is 10Kpa test, flow≥16L/min；
3、DC13Vtest：open flow≥25L/min；
4、Rated Current≤1.5A；
5、working voltage range 9V—16V；
6、working temperature：40~135℃；
7、Duty：S1
8、Protection grade：IP68
9、Control Style：Fixed speed/PWM/LIN
